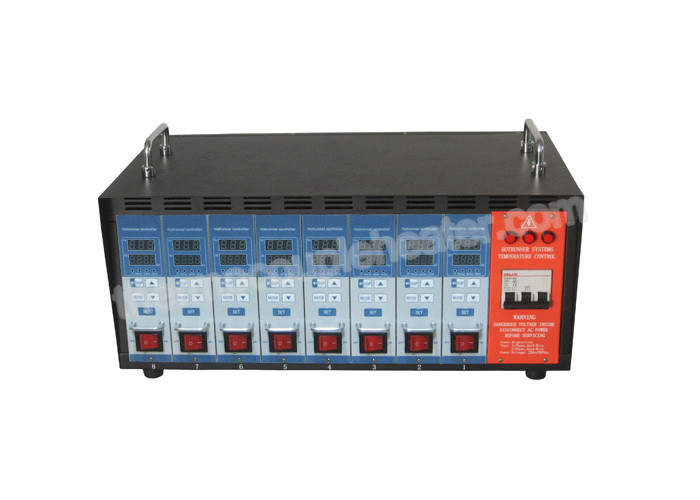

High Accuracy Temperature Controller for Injection Molding Systems

1. Description

Touch screen Temperature Controller for Plastic Injection Machine Hot runner System offer customized number of control zones and form factors.

This controller is ideal for regular molding machines without sequential fill capability. It allows operators to program the controller according their specific molding needs. Each control zone can be programmed for time-based and/or volume-based injection. The nozzles for each control zone can be graphically shown on the touch screen display.

The time from injection start to packing end (injection plus packing time) is entered into the Close Timer to switch all valves. Individual close times are also available.

2. Applications

This kind of controller could auto induct to any heating models and greatly improve the work capacity

Inner and outer ring to dynamic tracking the ambient temperature effectively prevent the influence of ambient temperature during measurement.

Cold compensation with thermostat of outer ring makes the control measure more precision through removing the ambient influence dynamically

Controller can easy detect to T/C reversed or T/C Open, and will be operated according to error information and control mode when detected the problems.

Temperature Deviation Alarms

Non-touch transfer

Heater current monitor

Soft start function

Manual output mode

Overall error indicator, easy to find error reason

Output module rating 15A per Point

3. Specifications

Wuhan Global Metal Engineering Co., Ltd (GME) specialize in the supply of heating elements and  temperature sensors(thermocouples & RTDs) for a vast array of industries since year 1995.

Our main products include but not limited to Coil heater, Cartridge heater, Flexible Tubular heater, Cast-in Heater, Band heater, Thermocouple, RTD’s, Thermocouple extension wire, Thermocouple connection head , Mineral Insulated thermocouple cables , thermowell, etc.

After 20 years growth, we have more than 200 employees in the factory including 50 sophisticated technicians. Our products have been exported to many countries including North America, South America, Europe, Middle East ,South Asia, etc.
