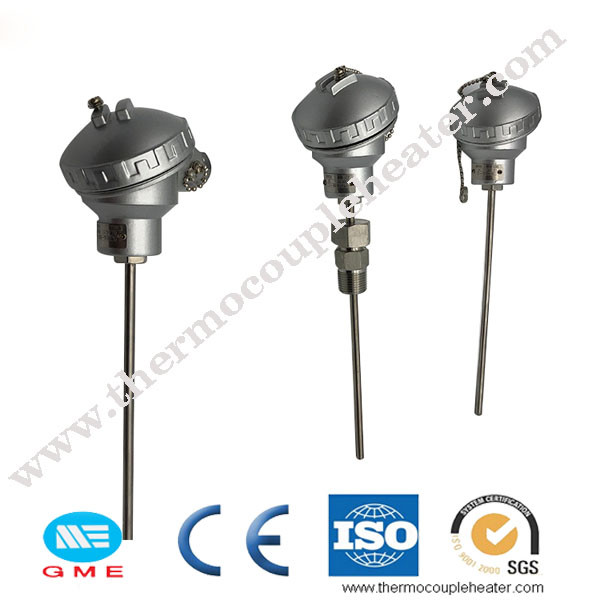

4" industrial K Type armoured Thermocouple Sensor with thread connection

Description:

1) A thermocouple is a simple, robust and cost-effective temperature sensor used in a wide range of temperature measurement processes. It consists of two dissimilar metal wires, joined at one end. When properly configured, thermocouples can provide measurements over a wide range of temperatures.

2) Thermocouples are Known for their versatility as temperature sensors, thermocouples are manufactured in a variety of styles, such as thermocouple probes,thermocouple probes with connectors, transition joint thermocouple probes, infrared thermocouples, bare wire thermocouple or even just thermocouple wire.

3) Thermocouples are manufactured in many different configurations for multitude of applications. Diameters, lengths, sheath material, lead lengths and sensor material are just a few of the variables that go into determining the style of thermocouple when manufactured. The main determining factors of what type thermocouple needs to be used in a application is temperature, environment, response time and accuracy. The junction of the thermocouple can be grounded, ungrounded or exposed.

Specification:

1).Type: K

2). Temperature range: 0°C-800°C

3). Precision grade: Class A / Class B

4). Probe diameter:8mm, can be customized

5). Probe material: SS304/SS316

6). Probe length:2000mm or customized

7). Movable thread size: M27*2

8). Thermocouple head type: water-proof

Application:

It is usually connected with display meter, recording meter and computer, etc. to directly measue temperature of liquid, vapor, gas and solid surface ranging from 0°C to 1300C during various production process.
